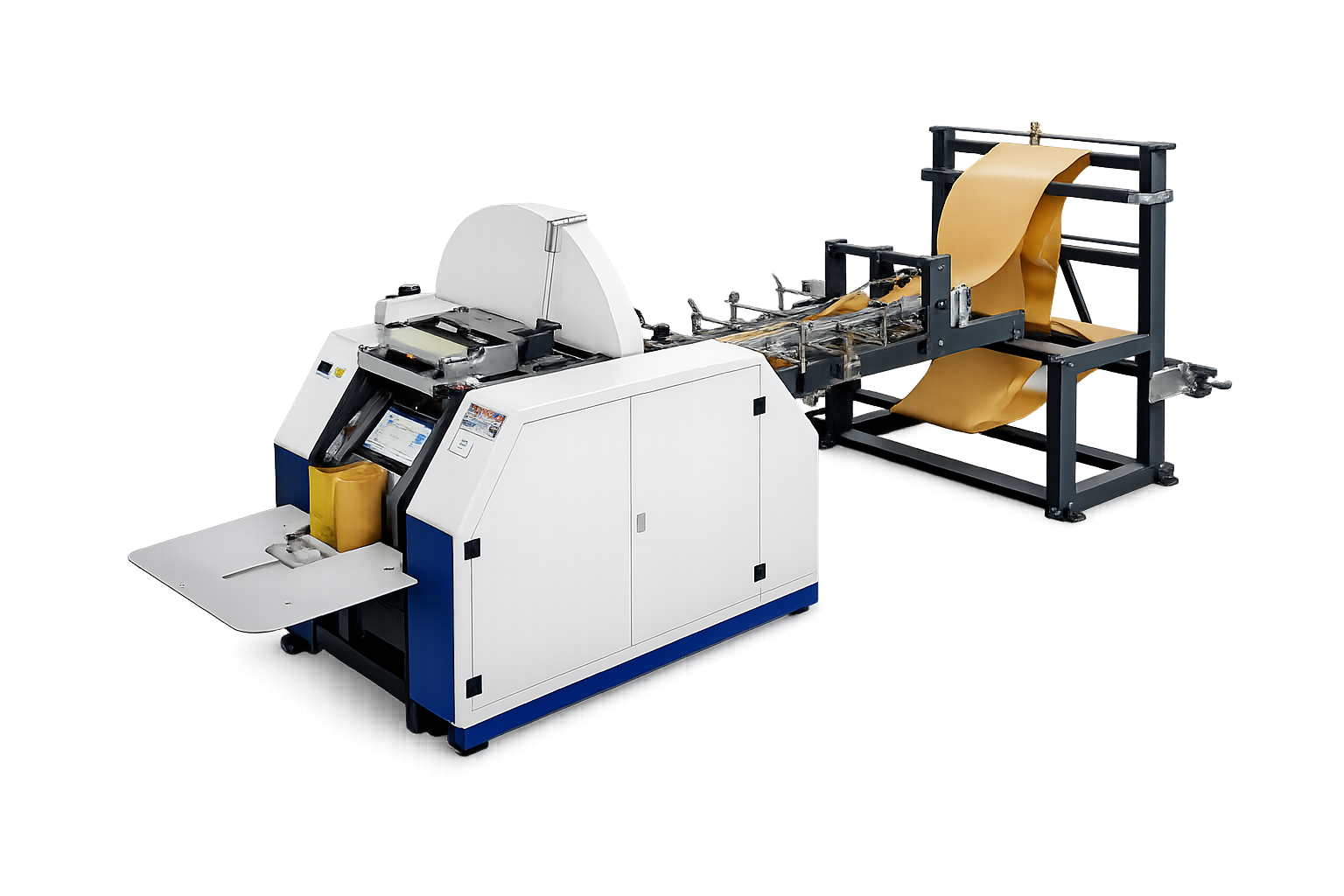

High Speed Paper Bag Machine
High Speed Paper Bag Machine is designed for fast and efficient production of paper bags in large volumes. It ensures smooth operation with consistent output quality, making it suitable for industries requiring high production capacity.
This machine works on an automatic system that converts paper rolls into finished bags with accurate cutting, folding, and sealing. As part of modern automatic paper bag machine solutions, it helps reduce production time and increase overall productivity.
It is widely used for manufacturing grocery, retail, and food packaging bags, offering a reliable and cost-effective solution for bulk production.
|
Key Benefits |
Applications |
|---|---|
|
✦ Strong industrial body construction |
✦ Large packaging manufacturers |
|
✦ Precision bag forming mechanism |
✦ Supermarket bag production |
|
✦ Stable vibration-free performance |
✦ Food packaging industries |
|
✦ Adjustable bag size options |
✦ Export packaging units |
|
✦ Adjustable bag dimensions |
✦ Promotional bag suppliers |
Technical Specifications – High Speed Paper Bag Machine
| Specification | Details |
|---|---|
| Production Speed | Up to 200–400 bags per minute depending on size and paper quality |
| Bag Type | Square Bottom, V Bottom, Grocery and Retail Bags |
| Bag Length Range | 150 mm – 700 mm adjustable |
| Bag Width Range | 70 mm – 450 mm depending on application |
| Paper GSM Range | 30 – 150 GSM kraft paper |
| Paper Roll Width | Up to 1200 mm |
| Max Roll Diameter | Up to 1200 mm |
| Control System | PLC with Touch Screen Interface |
| Drive System | Servo Motor Driven System |
| Gluing System | Automatic Side & Bottom Gluing |
| Power Requirement | 3 Phase Supply, 15 kW – 45 kW |
| Automation Level | Fully Automatic |
